ZF Marine Gearbox Range at Lancing Marine
Lancing Marine supplies a comprehensive range of ZF Marine gearboxes, offering dropboxes, angle and V-drive solutions for inboard diesel engines. We stock more than 100 gearboxes for 10 HP to over 1000 HP applications. Whether you're repowering a fishing boat, building a high-speed craft, or upgrading a workboat, we can recommend and supply the right gearbox for your propulsion system.
Need Help Choosing?
Every installation is different. Factors like propeller load, engine torque curve, mounting angle, and driveshaft configuration all affect the correct choice. Contact our technical team with your engine details and vessel use case, and we’ll recommend a suitable ZF gearbox.
Watch: ZF Gearbox Range Overview

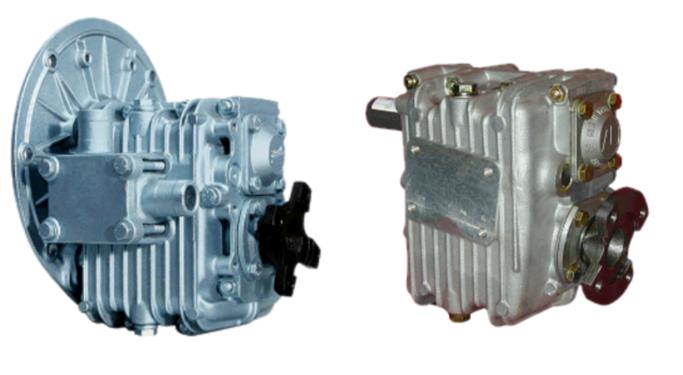

ZF12 - 30 M MECHANICAL MARINE GEARBOXES
Contact us at Lancing Marine, Data@Lancingmarine.com
Select for best prices.
ZF 12 M - A direct replacement for the Hurth HBW125.
ZF 15 M - Designed for engines up to 2.0hp per 100rpm.
ZF 15 MA - Angle Drive gearbox.
ZF 15 MIV - Vee Drive gearbox.
ZF 25 M -Mechanical gearbox.
ZF 25 MA - Angle drive gearbox.
ZF 30 M - Mechanical gearbox.
Lancing Marine ZF Gearbox Pricebook
ZF 25 - 45 HYDRAULIC MARINE GEARBOXES
Contact us at Lancing Marine, Data@Lancingmarine.com
Select for best prices.
ZF 25 - Hydraulic drive selection.
ZF 25 A Angle drive gearbox.
ZF 45-1 - Hydraulic drive selection.
ZF 45 A Angle drive gearbox.
ZF 45 C - Co-axial In-line gearbox.
Lancing Marine ZF Gearbox Pricebook
ZF 63, 68, 85, 90 AND 115 MARINE GEARBOXES
Contact us at Lancing Marine, Data@Lancingmarine.com
Select for best prices.
ZF 63 - Hydralic drive selection.
ZF 63 A Angle drive gearbox.
ZF 68 - Hydraulic drive selection.
ZF 68 A Angle drive gearbox.
ZF 63 C - Co-axial In-line gearbox.
ZF 68 IV - Vee-drive gearbox.
ZF 85 A - Hydraulic drive selection.
ZF 85 IV - Vee-drive gearbox.
ZF 90 TS - Two speed gearbox.
ZF 90 IVTS - Vee-drive two speed gearbox.
ZF115 IVTS - Vee-drive two speed gearbox.
Lancing Marine ZF Gearbox Pricebook
ZF220 - 305 Series Marine Gearboxes
Contact us at Lancing Marine, Data@Lancingmarine.com
Select for best prices.
ZF 220 - Drop centre gearbox.
ZF 220 A - Angle drive gearbox.
ZF 280-1 - Drop centre gearbox.
ZF 280 IV - Vee-drive gearbox.
ZF 280-1 A - Angle drive gearbox.
ZF 286 - Drop centre gearbox.
ZF 286 A - Angle drive gearbox.
ZF 301 C - Co-axial In-line gearbox.
ZF 301-1 - Drop centre gearbox.
ZF 305-3 - Drop centre gearbox, up to 29hp/100rpm capability. Available with mechanical or electric gear selection.
Lancing Marine ZF Gearbox Pricebook
ZF 325 to 665 Series Marine Gearboxes
Where possible please supply the exsisting gearbox nameplate to enable a like for like quotation. A full list of ZF options available on request. Contact us at Lancing Marine, Data@Lancingmarine.com
Select for best prices.
ZF 311-A - High performance angle drive gearbox
ZF 325-1 - High performance angle drive gearbox
ZF 325-A /ATS /IV /IVTS- High performance angle drive gearbox
ZF 360 - High performance angle drive gearbox
ZF 360 IV - High performance angle drive gearbox
ZF 400 - High performance angle drive gearbox
ZF 400 A /V /IV - High performance angle drive gearbox
ZF 500 - High performance angle drive gearbox
ZF 500-1 A / 1 IV- High performance angle drive gearbox
ZF 510-1 A /V - High performance angle drive gearbox
ZF 550-1 - Continious duty specification gearbox
ZF 550 A /ATS /TS /V - Continious duty specification angle drive gearbox
ZF 665 - Continious duty specification gearbox
ZF 665 A /ATS /TS /V - Continious duty specification gearbox
Lancing Marine ZF Gearbox Pricebook
ZF - W320 to W650
Series Marine Gearboxes
Where possible please supply the exsisting gearbox
nameplate to enable a like for like quotation. A full list of ZF options
available on request. Contact us at Lancing Marine, Data@Lancingmarine.com
Select for best prices.
ZF W320 - Commercial duty gearbox, cast iron housing with deep reduction ratios.
ZF W220 - Commercial duty gearbox, cast iron housing with deep reduction ratios.
ZF W325 - Commercial duty gearbox, cast iron housing with deep reduction ratios.
ZF W340 - Commercial duty gearbox, cast iron housing with deep reduction ratios.
ZF W350-1 - Commercial duty gearbox, cast iron housing with deep reduction ratios.
ZF W650 - Commercial duty gearbox, cast iron housing with deep reduction ratios.
ZF 2000 Series Marine Gearboxes, Replacement Capability
To progress enquiries for these gearboxes Lancing Marine requires a declration to be completed. For replacement supply of the exsisting namplate is sufficient for the initial enquiry, For new builds and re-power applications we require vessel project details are provided together with end use statements. Please download the ZF Marine Propulsion Equipment Application & Declaration Form complete and send to Data@Lancingmarine.com. Without the information identified it will not be possible to progress.
ZF 2000 - Vertical Offset Gearbox (1053kW).
ZF 2000 A - Down Angle Gearbox (1053kW).
ZF 2000 V - V-Drive Gearbox (1053kW).
ZF 2050 - Vertical Offset Gearbox (1156kW).
ZF 2050 A - Down Angle Gearbox (1156kW).
ZF 2050 V - V-Drive Gearbox (1156kW).
ZF 2150 - Vertical Offset Gearbox (1156kW).
ZF 2150 A - Down Angle Gearbox (1156kW).
ZF 2150 V - V-Drive Gearbox (1156kW).
ZF 3000 Series Marine Gearboxes, Replacement Capability
To progress enquiries for
these gearboxes Lancing Marine requires a declration to be completed.
For replacement supply of the exsisting namplate is sufficient for the
initial enquiry, For new builds and re-power applications we require
vessel project details are provided together with end use statements.
Please download the ZF Marine Propulsion Equipment Application & Declaration Form complete and send to Data@Lancingmarine.com. Without the information identified it will not be possible to progress.
ZF 3000 - Vertical Offset Gearbox (1164kW).
ZF 3000 A - Down Angle Gearbox (1164kW).
ZF 3000 V - V-Drive Gearbox (1164kW).
ZF 2060 - Vertical Offset Gearbox (1268kW).
ZF 2060 A - Down Angle Gearbox (1268kW).
ZF 2060 V - V-Drive Gearbox (1268kW).
ZF 3360 - Vertical Offset Gearbox (1305kW).
ZF 2075 A2 - Down Angle Gearbox (1346kW).
ZF 2075 V2 - V-Drive Gearbox (1346kW).
ZF 3050 - Vertical Offset Gearbox (1418kW).
ZF 3050 A - Down Angle Gearbox (1418kW).
ZF 3050 V - V-Drive Gearbox (1418kW).
ZF 3055 - Vertical Offset Gearbox (1493kW).
ZF 3055 A - Down Angle Gearbox (1493kW).
ZF 3055 V - V-Drive Gearbox (1493kW).
ZF 3060 - Vertical Offset Gearbox (1682kW).
ZF 3060 A - Down Angle Gearbox (1682kW).
ZF 5000 Series Marine Gearboxes, Replacement Capability
To progress enquiries for
these gearboxes Lancing Marine requires a declration to be completed.
For replacement supply of the exsisting namplate is sufficient for the
initial enquiry, For new builds and re-power applications we require
vessel project details are provided together with end use statements.
Please download the ZF Marine Propulsion Equipment Application & Declaration Form complete and send to Data@Lancingmarine.com. Without the information identified it will not be possible to progress.
ZF 5000 - Vertical Offset Gearbox (1941kW).
ZF 5000 A - Down Angle Gearbox (1941kW).
ZF 5000 V - V-Drive Gearbox (1941kW).
ZF 5055 - Vertical Offset Gearbox (2004kW).
ZF 5055 A - Down Angle Gearbox (2004kW).
ZF 5055 V - V-Drive Gearbox (2004kW).
ZF 5050 - Vertical Offset Gearbox (2170kW).
ZF 5050 A - Down Angle Gearbox (2170kW).
ZF 5050 V - V-Drive Gearbox (2170kW).
ZF 5060 - Vertical Offset Gearbox (2312kW).
ZF 5060 A - Down Angle Gearbox (2312kW).
ZF 5060 V - V-Drive Gearbox (2312kW).
ZF 8000 Series Marine Gearboxes, Replacement Capability
To progress enquiries for
these gearboxes Lancing Marine requires a declration to be completed.
For replacement supply of the exsisting namplate is sufficient for the
initial enquiry, For new builds and re-power applications we require
vessel project details are provided together with end use statements.
Please download the ZF Marine Propulsion Equipment Application & Declaration Form complete and send to Data@Lancingmarine.com. Without the information identified it will not be possible to progress.
ZF 8000 - Vertical Offset Gearbox (2441kW).
ZF 8000 A - Down Angle Gearbox (2441kW).
ZF 8000 V - V-Drive Gearbox (2441kW).
ZF 8055 - Vertical Offset Gearbox (2626kW).
ZF 8055 A - Down Angle Gearbox (2626kW).
ZF 8055 V - V-Drive Gearbox (2626kW).
ZF 8050 - Vertical Offset Gearbox (2742kW).
ZF 8050 A - Down Angle Gearbox (2742kW).
ZF 8050 V - V-Drive Gearbox (2742kW).
ZF 8060 - Vertical Offset Gearbox (2951kW).
ZF 8060 A - Down Angle Gearbox (2951kW).
ZF 8060 V - V-Drive Gearbox (2951kW).
ZF 9000 - Vertical Offset Gearbox (3150kW).
ZF 9000 Series Marine Gearboxes, Replacement Capability
To progress enquiries for
these gearboxes Lancing Marine requires a declration to be completed.
For replacement supply of the exsisting namplate is sufficient for the
initial enquiry, For new builds and re-power applications we require
vessel project details are provided together with end use statements.
Please download the ZF Marine Propulsion Equipment Application & Declaration Form complete and send to Data@Lancingmarine.com. Without the information identified it will not be possible to progress.
ZF 9000 A - Down Angle Gearbox (3150kW).
ZF 9000 V - V-Drive Gearbox (3150kW).
ZF 9050 - Vertical Offset Gearbox (3440kW).
ZF 9050 A - Down Angle Gearbox (3440kW).
ZF 9050 V - V-Drive Gearbox (3440kW).
ZF 9060 - Vertical Offset Gearbox (3440kW).
ZF 9060 A - Down Angle Gearbox (3440kW).
ZF 9060 V - V-Drive Gearbox (3440kW).
ZF 9055 - Vertical Offset Gearbox (3479kW).
ZF DUTY CLASSIFICATIONS
P Pleasure Duty
Highly intermittent operation with very large variationsin engine speed and power. Average engine operation hours limit: 500 hours/year(for mechanical (“M”) transmissions: 300 hours/years). Typical hull forms: Planing. Applications: Private, non-commercial, non-charter,leisure activities, no racing.
L Light Duty
Intermittent operation with large variations in enginespeed and power. Average engine operation hours limit: 2500 hours/year(for hydraulic transmissions smaller than ZF 2000 series:2000 hours/year). Typical hull forms: Planing and semi-displacement. Typical applications: Private and charter, sport/leisure activities,government applications, no racing.
M Medium Duty
Intermittent operation with some variations in enginespeed and power. Average engine operation hours limit: 4000 hours/year(for transmissions smaller than ZF 2000 series and workboatZF W2300 series: 3500 hours/year). Typical hull forms: Semi-displacement and displacement. Typical applications: Charter and commercial craft(example: crew boats) sport/leisure activities, governmentapplications.
C Continuous Duty
Continuous operation with little or no variations in engine speedand power.Average engine operation hours limit: unlimited. Typical hull forms: Displacement. Typical applications: Heavy duty commercial vessels
