Forani & Pecorari Marine Pumps
Posted: 31 December 2024
Forani & Pecorari Marine Pumps
Posted: 25 March 2025
Overview
Italy's Forani & Pecorari have produced bronze
seawater pumps, designed exclusively for commercial fishing vessels
& workboats, for over half a century.
Their production includes self-priming centrifugal
& turbine ( aka peripheral or regenerative ) pumps for engine
cooling, bilge, deckwash, fire applications etc.with a well-earned
reputation for reliability & longevity.
Models can be supplied as close-coupled motor pump
units, mostly 3-phase but with options in smaller sizes in 24vDC form.
Also in the range are bare shaft models with clutch options, magnetic or
manual, where pto drive is utilised. Most models can also be supplied
with hydraulic motors.
Centrifugal & turbine self-primers up to 2 1/2"
bore ( max 90 & 55 cu.m/hr ) are produced and end suction designs up
to 5" bore ( max 500 cu.m/hr ). Further, there are 3-way &
rt.angle bronze SDNR valves catalogued.
A widely appreciated feature of the Forani pumps is
the ready availability of spares at realistic prices, complementing the
attraction of the range to commercial users throughout Europe &
beyond.
Contents
Pump Types – Technical Breakdown
Monobloc Electric Pumps
CV Centrifugal motor pump unit with vortex impeller
PC Selfpriming close coupled motor pump unit
TS Selfpriming close coupled motor pump unit
AM Selfpriming close coupled motor pump unit
CM Centrifugal close coupled motor pump unit

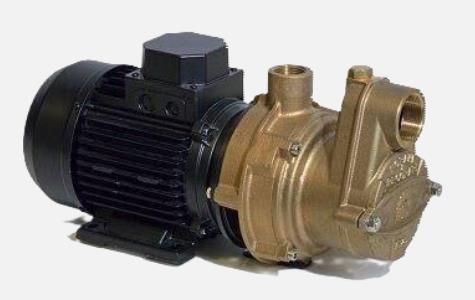

AT Self-priming macerator pump with vortex impeller

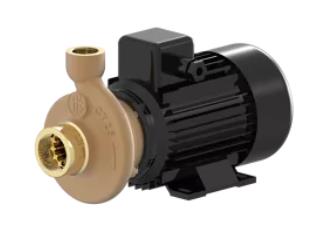

CT Centrifugal motor pump unit with vortex impeller
Engine Driven Pumps
AM Engine driven selfpriming pump
CM Engine driven centrifugal pump
Bare Shaft Pumps
B Selfpriming bare shaft pump
PC Selfpriming bare shaft pump
TS Selfpriming bare shaft pump
AM Selfpriming bare shaft pump

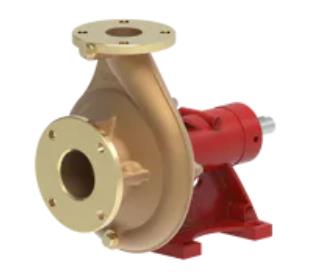

CM Centrifugal bare shaft pump
Manual Clutch Pumps
B Selfpriming pump with manual or electromagnetic clutch
PC Selfpriming pump with manual or electromagnetic clutch
TS Selfpriming pump with manual or electromagnetic clutch
AM Selfpriming pump with manual or electromagnetic clutch
CM Cenrifugal pump with manual or electromagnetic clutch
Electromagnetic Clutch Pumps
PC Selfpriming pump with manual or electromagnetic clutch
TS Selfpriming pump with manual or electromagnetic clutch
AM Selfpriming pump with manual or electromagnetic clutch
CM Cenrifugal pump with manual or electromagnetic clutch
Hydraulic Motor Pumps
PC Self-priming pump with Hydraulic Motor
TS Self-priming pump with Hydraulic Motor
AM Self-priming pump with Hydraulic Motor
CM Monobloc centrifugal pump with Hydraulic motor
Pumps with SAE Flanges
PC Selfpriming pump with SAE flange
TS Selfpriming pump with SAE flange
Accessories
SM / 3V2 and 3 way valves
F External filter
G Internal filter
PPC / PPLBulkead passages
PC Deck passages
Engine Cooling Pumps
B40VS2 Sea water pump for direct coupling on Wartsila UD25.L6 and UD150.V12 and VM 1300 V engines

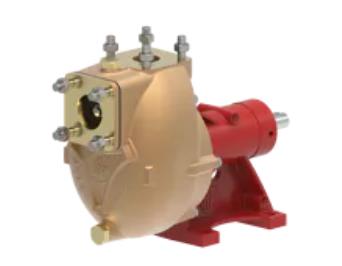

AM Series – Self-Priming Bronze Pumps
- Self-priming design (up to 7m vertical suction lift)
- Bronze casing, bronze impeller, stainless shaft
- Grease-lubricated ball bearings
- Available in clockwise and anti-clockwise rotation
- Supplied bare shaft for flexible coupling or pulley drive
Shaft Rotation Options
Correct rotation is essential. Impellers are angled to match rotation direction. Clockwise pumps are standard. Anti-clockwise versions are designed for mirrored installations or opposite-facing PTOs.
⚡ Motorised Options – 12V / 24V
All Forani pumps can be paired with DC motors. We offer 12V and 24V marine-grade motors. These are ideal for isolated or auxiliary systems on commercial and leisure vessels.
Flow Rate & Head Overview
| Model | Flow Rate (max) | Total Head (max) | Recommended Use |
| AM40 | 5–7 m³/h | 20 m | Bilge, light deckwash |
| AM50 | 8–12 m³/h | 25 m | Ballast, fire main |
| AM65 | 15–18 m³/h | 30 m | Transfer, emergency |
Product Specifications
➡️ AM Series – Clockwise Rotation
| Model | Rotation | Port Size | Notes |
| AM40D5 | Clockwise | 1½″ BSP | Flexible coupling, bare shaft |
| AM50D5 | Clockwise | 2″ BSP | Flexible coupling, bare shaft |
| AM65D200A | Clockwise | 2½″ BSP | Flanged, high-flow pump |
⬅️ AM Series – Anti-Clockwise Rotation
| Model | Rotation | Port Size | Notes |
| AM40S | Anti-Clockwise | 1½″ BSP | Flexible coupling, bare shaft |
| AM50S | Anti-Clockwise | 2″ BSP | Flexible coupling, bare shaft |
Engineering Notes
- Front faceplate allows quick access to impeller for servicing
- Flexible baseplate mounting allows custom installation angles
- Motors can be supplied pre-mounted or as separate units
- Ideal for mechanical systems where electronic reliance is minimal
Further Resources
- Lancing Marine Forani & Pecorani Pricebook Page 35
- Manufacturer – Forani & Pecorari
We’re happy to advise on pump selection, cooling systems, and integration with existing engines or electrical systems.
Email: Data@lancingmarine.com
Phone: +44 (0)1273 411765
WhatsApp: Message Us
