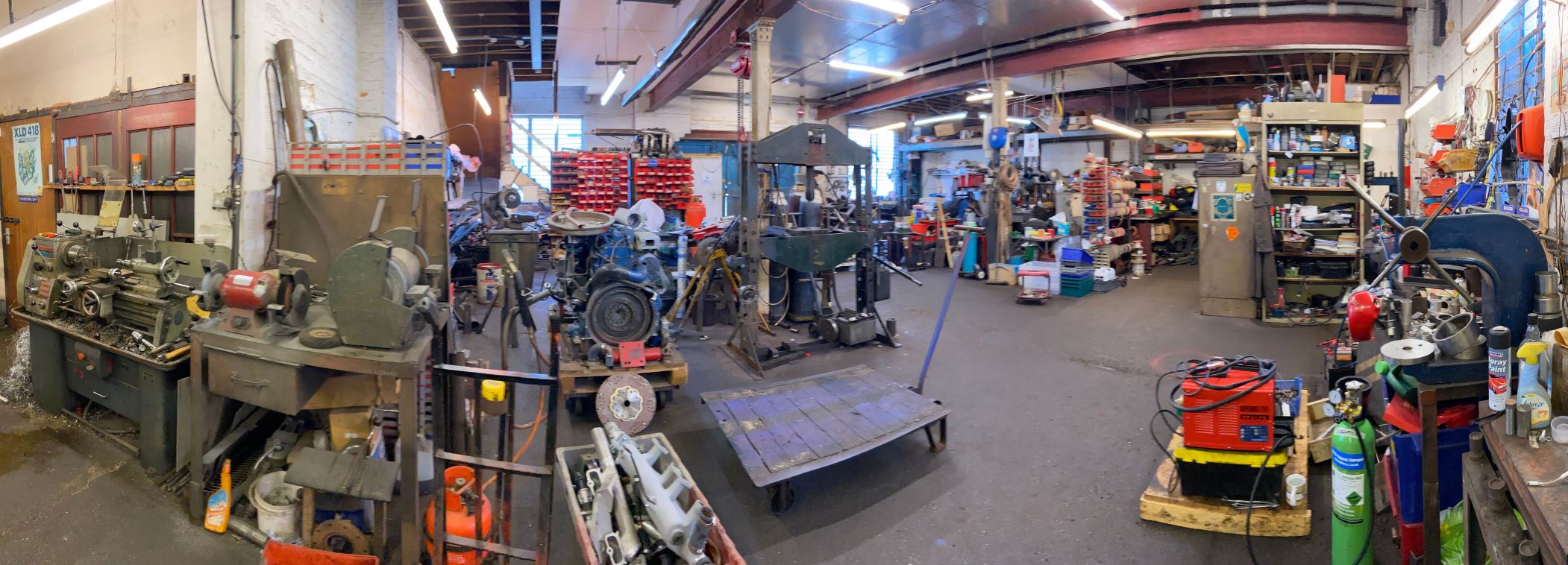

Workshop Services
Posted: 16 April 2023
Test for Hurth & ZF Older Models
MECHANICAL GEARBOX
MECHANICAL ANGLE DRIVE GEARBOX
| OLD MODEL | CURRENT ZF MODEL | COMMENTS |
| HBW 40 | ZF 4 M | Mechanical gear selection |
| HBW50 | ZF 5 M | Mechanical gear selection |
| HBW 100 | ZF 10 M | Mechanical gear selection |
| HBW 125 | ZF 12 M | Mechanical gear selection |
| HSW 125 H | ZF 12 M | Mechanical gear selection |
| HBW 150 | ZF 15 M | Mechanical gear selection |
| HBW 250 | ZF 25 M | Mechanical gear selection |
SMALL MECHANICAL VEE DRIVE GEARBOX
| OLD MODEL | CURRENT ZF MODEL | COMMENTS |
| HBW 150 A | ZF 15 MA | Angle drive mechanical |
| HSW 250 A | ZF 25 A | Angle drive mechanical |
HYDRAULIC GEARBOX
| OLD MODEL | CURRENT ZF MODEL | COMMENTS |
HYDRAULIC ANGLE DRIVE GEARBOX
| OLD MODEL | CURRENT ZF MODEL | COMMENTS |
| IRM 220 PL | ZF 220 | Hydraulic clutch engagement |
| HSW 450 H2 | ZF 45 | Hydraulic clutch engagement |
| HSW 450 D | ZF 45 6 | Hydraulic clutch engagement |
| HSW 630 H1 | ZF 63 | Hydraulic clutch engagement |
| HSW 630 D | ZF 63 C | Hydraulic clutch engagement |
| IRM 280 PL-1 | ZF 280 | Hydraulic clutch engagement |
| IRM 301 PL-2 | ZF 301 | Hydraulic clutch engagement |
| IRM 311 PL | ZF 311 | Hydraulic clutch engagement |
| IRM 320 PL-1 | ZF 320 | Hydraulic clutch engagement |
| IRM 325 PL | ZF 325 | Hydraulic clutch engagement |
| IRM 350 PL-2 | ZF 350 | Hydraulic clutch engagement |
| BW 155 | ZF 550 | Hydraulic clutch engagement |
| BW 160 | ZF 600 | Hydraulic clutch engagement |
| BW 165 | ZF 650 | Hydraulic clutch engagement |
| BW 165 P3 | ZF 660 | Hydraulic clutch engagement |
HYDRAULIC VEE DRIVE GEARBOX
| OLD MODEL | CURRENT ZF MODEL | COMMENTS |
| IRM 220 A-1 | ZF 220 A | Angle Drive Hydraulic |
| HSW 630 A1 | ZF 63 A | Angle Drive Hydraulic |
| HSW 800 A2 | ZF 80 A | Angle Drive Hydraulic |
| HSW 800 A3 | ZF 80-1 A | Angle Drive Hydraulic |
| IRM 280 A-2 | ZF 280 A | Angle Drive Hydraulic |
| IRM 301 A-2 | ZF 301 A | Angle Drive Hydraulic |
| IRM 320 A-1 | ZF 320 A | Angle Drive Hydraulic |
| IRM 311 A-1 | ZF 311 A | Angle Drive Hydraulic |
LARGE HYDRAULIC GEARBOX
| OLD MODEL | CURRENT ZF MODEL | COMMENTS |
| HSW 630 V1 | ZF 63 IV | Vee Drive Hydraulic |
| HSW 800 V1 | ZF 80 IV | Vee Drive Hydraulic |
| HSW 800 V2 | ZF 80-1 IV | Vee Drive Hydraulic |
| IRM 220 V-LD | ZF 220 IV | Vee Drive Hydraulic |
| IRM 220 V-2 | ZF 220 V | Vee Drive Hydraulic |
| IRM 280 V-LD-1 | ZF 280 IV | Vee Drive Hydraulic |
| IRM 302 V-LD-1 | ZF 302 IV | Vee Drive Hydraulic |
| IRM 350 V-LD-1 | ZF 350 IV | Vee Drive Hydraulic |
| IRM 350 V | ZF 350 V | Vee Drive Hydraulic |
| BW 155 V | ZF 550 V | Vee Drive Hydraulic |
| BW 160 V | ZF 600 V | Vee Drive Hydraulic |
| BW 165 V | ZF 650 V | Vee Drive Hydraulic |
| BW 165 VP3 | ZF 660 V | Vee Drive Hydraulic |
LARGE HYDRAULIC ANGLE DRIVE GEARBOX
| OLD MODEL | CURRENT ZF MODEL | COMMENTS |
| BW 190 | ZF 1900 | - |
| BW 195 | ZF 1950 | - |
| BW 195 A | ZF 1950 A | - |
| BW 195 P1 | ZF 1955 | - |
| BW 196 | ZF 1960 | - |
| BW 196 P1 | ZF 1965 | - |
| BW 250 | ZF 2500 | - |
| BW 255 | ZF 2550 | - |
| BW 255 P | ZF 2555 | - |
| BW 256 | ZF 2560 | - |
| BW 256 P | ZF 2565 | - |
| BWK 455-1 | ZF 4550 C | - |
| BW 457-1 | ZF 4570 | - |
| BW 460-1 | ZF 4600 | - |
| BW 465 | ZF 4640 | - |
| BW 465-1 | ZF 4650 | - |
| BW 466 | ZF 4660 | - |
| BW 466 G | ZF 4661 | - |
| BW 750 | ZF 7500 | - |
| BWK 750 | ZF 7500 C | - |
| BW 754 | ZF 7540 | - |
| BW 755 | ZF 7549 | - |
| BWK 755 | ZF 7549 C | - |
| BW 755-1 | ZF 7550 | - |
| BU 755-1HWR/L | ZF 7550 NRH | - |
| BWK 785 | ZF 7850 C | - |
| BW 1200 | ZF 12000 | - |
| BWK 1200 | ZF 12000 C | - |
| BW 1201 | ZF 12010 | - |
| BW 1202 | ZF 12020 | - |
| BW 1555 | ZF 15550 | - |
| BWK 1555 | ZF 15550 C | - |
| BW 1556 | ZF 15560 | - |
| BW 1557 | ZF 15570 | - |
| BW 2057 | ZF 20570 | - |
| BWK 2356 | ZF 23560 C | - |
| BW 2356 DR/DL | ZF 23560 D | - |
| BWK 2386 | ZF 23860 C | - |
LARGE HYDRAULIC VEE DRIVE GEARBOX
| OLD MODEL | CURRENT ZF MODEL | COMMENTS |
| IRM 350 A-2 | ZF 350 A | - |
| BW 155 A | ZF 550 A | - |
| BW 160 A | ZF 600 A | - |
| BW 165 A | ZF 650 A | - |
| BW 165 AP3 | ZF 660 A | - |
| BW 165 AP4 | ZF 670 A | - |
| BW 190 A | ZF 1900 A | - |
| BW 195 AP1 | ZF 1955 A | - |
| BW 250 A | ZF 2500 A | - |
| BW 255 A | ZF 2550 A | - |
| BW 255 AP | ZF 2555A | - |
| OLD MODEL | CURRENT ZF MODEL | COMMENTS |
| BW 190 V | ZF 1900 V | - |
| BW 195 V | ZF 1950 V | - |
| BW 195 VP1 | ZF 1955 V | - |
| BW 250 V | ZF 2500 V | - |
| BW 255 V | ZF 2550 V | - |
| BW 255 VP | ZF 2555 V | - |
| BW 465-1 V | ZF 4650 V | - |
